Ultra Mini Power Box W/Engle Socket – 12V/24V DC – 10 Devices (Surface Mount)

Description

Features

• Robust Construction: Crafted from high-quality ABS plastic housing, ensuring durability and safety in use.
• Easy Connectivity: Utilize the plug-and-play design to connect your battery via an Anderson input, powering multiple DC ports effortlessly.

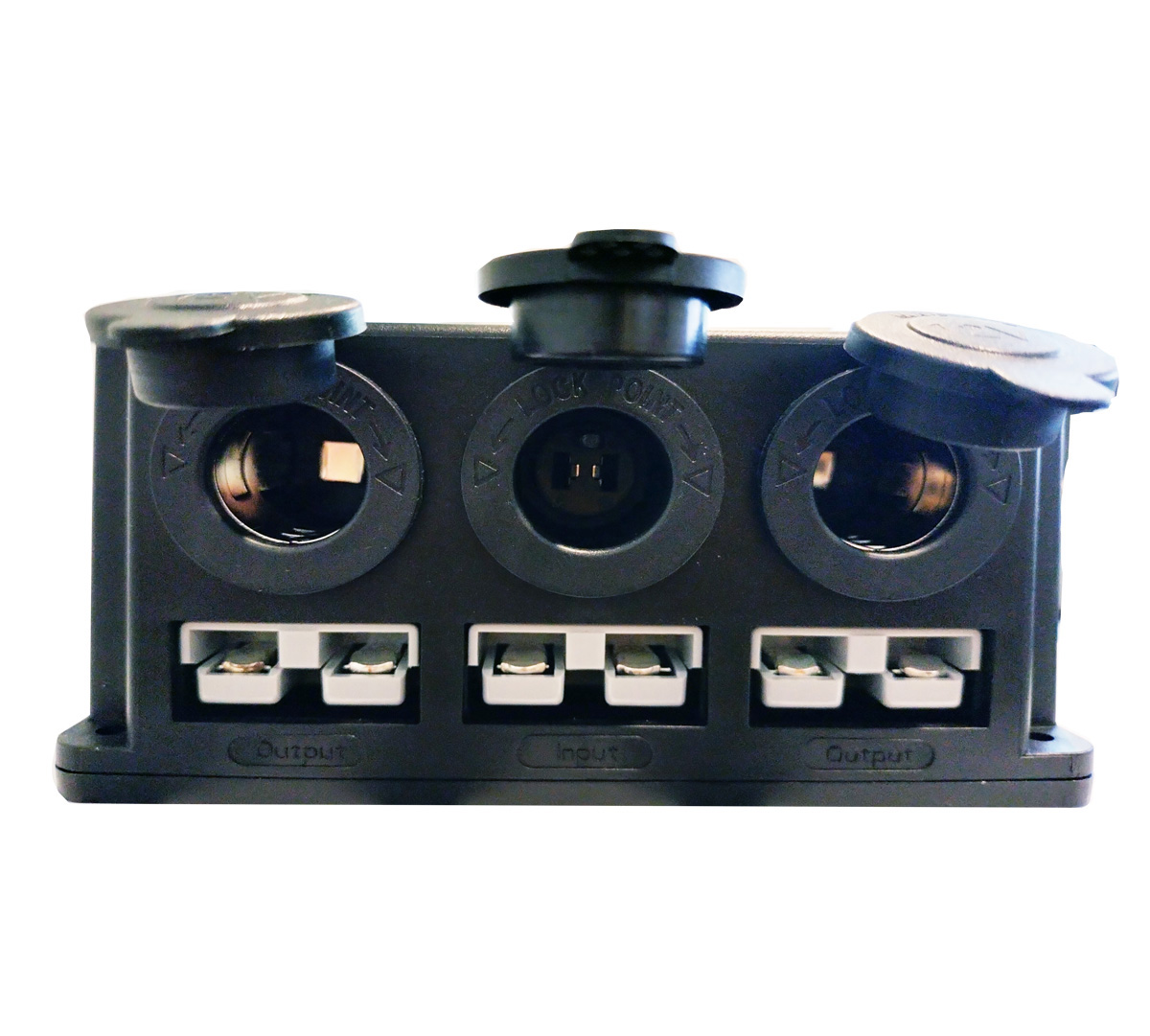

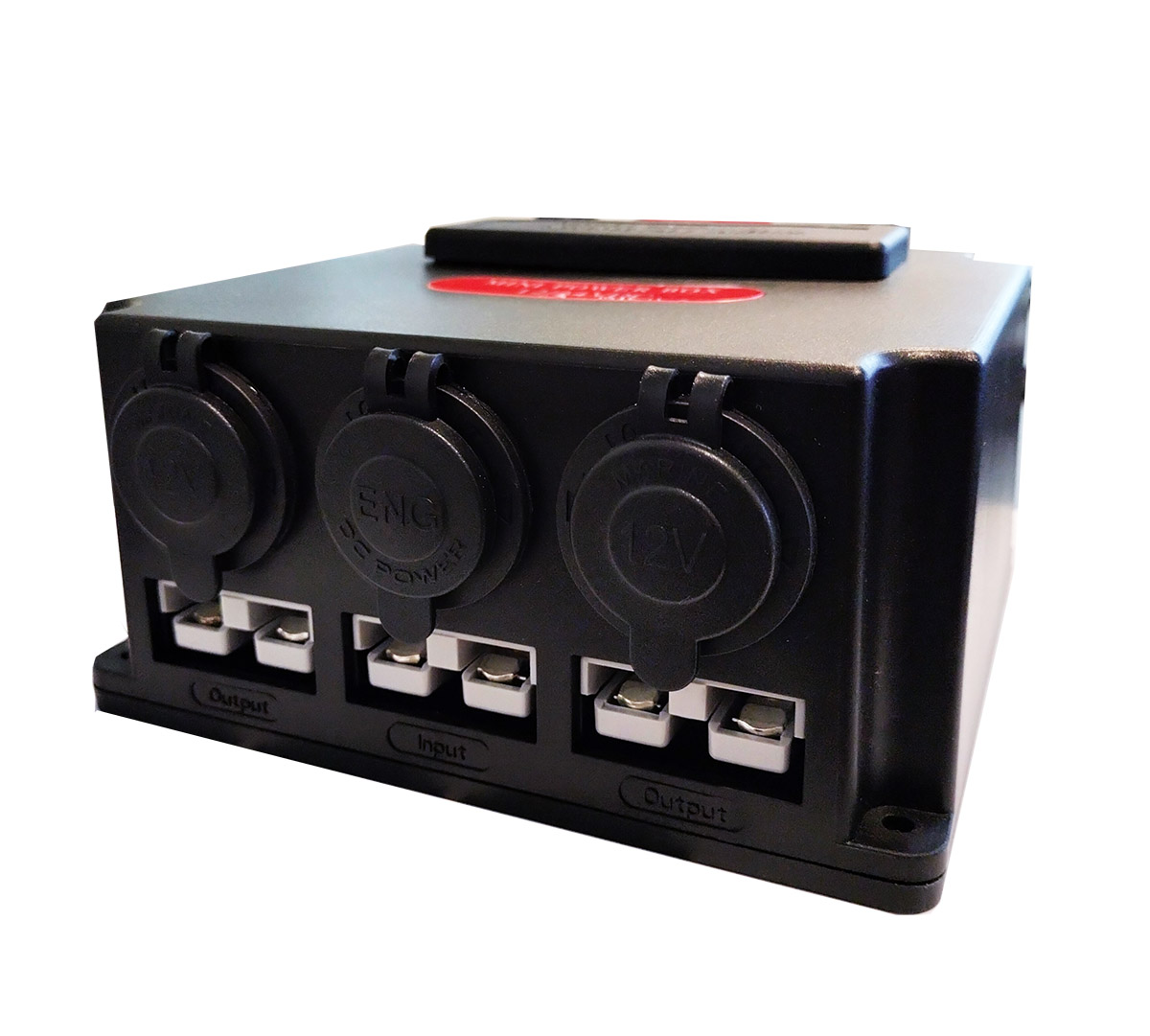

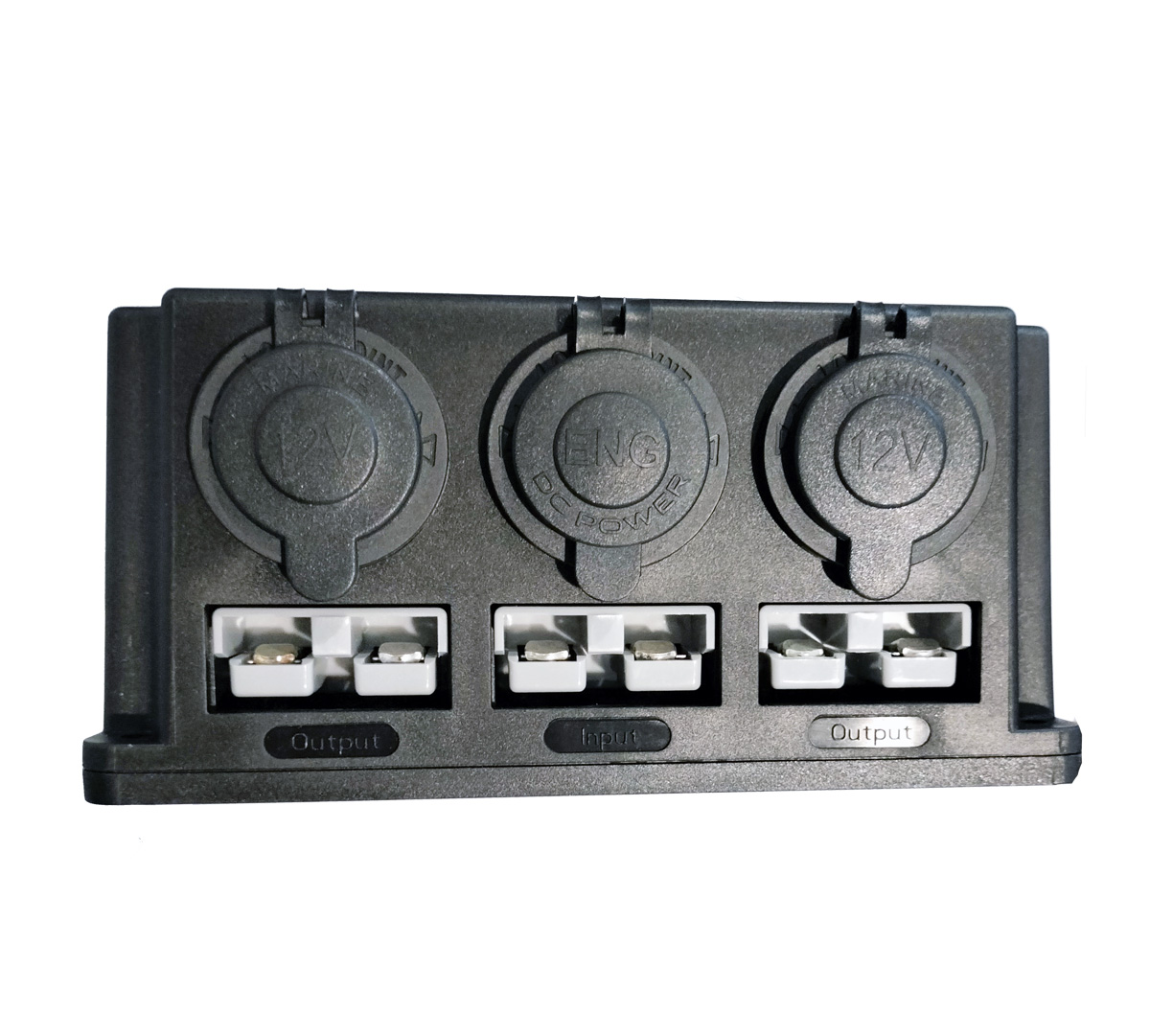

• Versatile Functionality: Equipped with a range of ports including four 2.4 A USB ports, one type-C port, two cigarette sockets, one engel socket and two Anderson style output ports, allowing you to power various devices such as phones, tablets, fridges, ovens, lights, fans, and much more.
• Enhanced Safety Features: Integrated blade fuses safeguard the Mini power box against overload or short circuit incidents. Each Anderson output connector is protected by a 30-amp blade fuse, while each cigarette socket is rated for up to 10 amps with individual 10-amp blade fuses.
• Superior Protection: Boasting an IP65 protection level, ensuring resistance against dust and water ingress.
• Wide Compatibility: Suitable for use with any DC 12V vehicle, including cars, UTVs, ATVs, caravans, buses, trucks, trailers, RVs, marine boats, and yachts.

Specifications

• Input Voltage: DC 12V 24V
• Aderson Connector: 50A x 3 ( input x 1, output x 2, 30A Max )
• USB Socket : DC 5V 2.4A x 4, Typ-c Max 60W x 1
• Engle Socket: Max 20A x 1
• Cigarette Sockets : Max 10A x 2 ( 10A Blade Fuse )

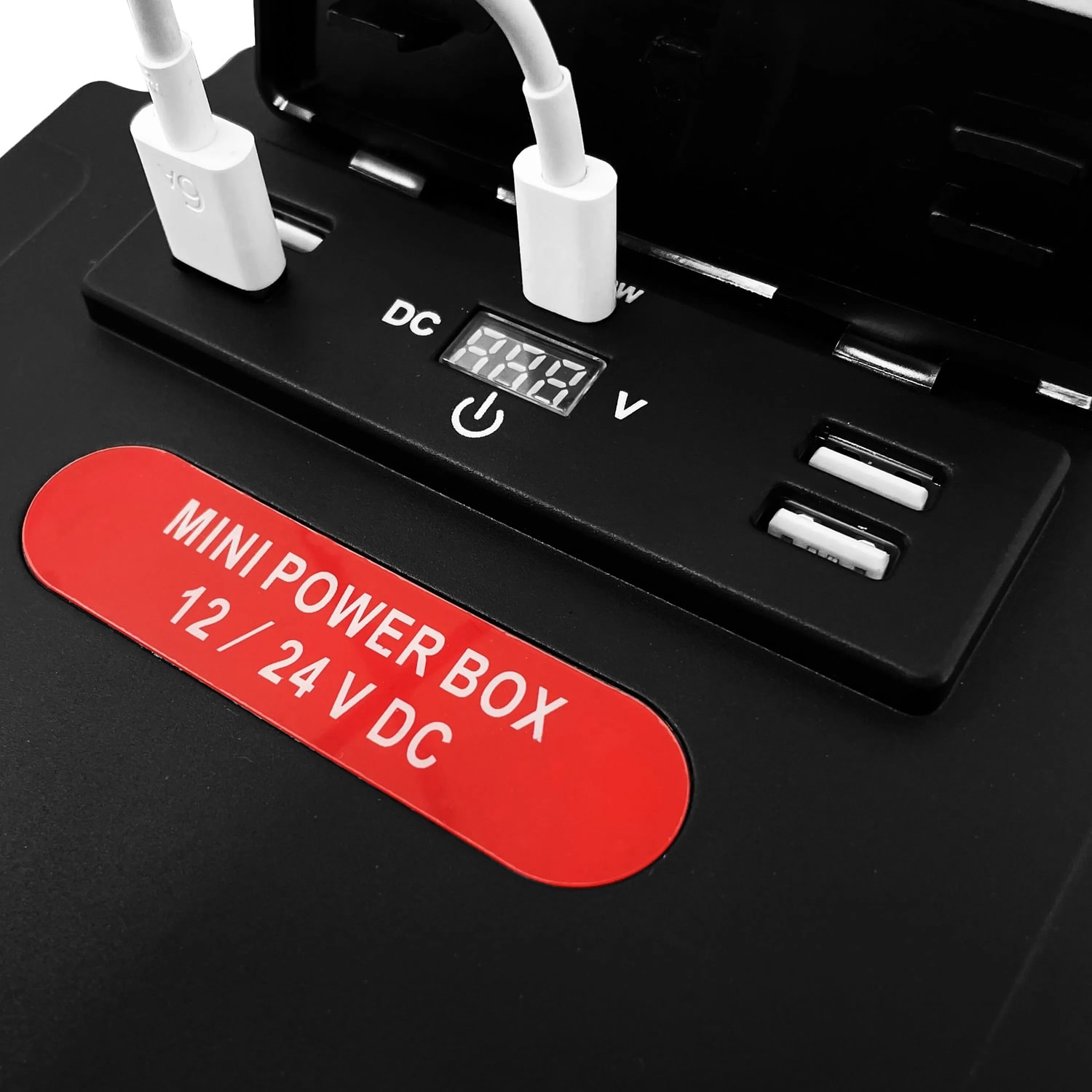

• Voltmeter : DC 6-30V
• Dimensions : 160 x 140 x 80mm
