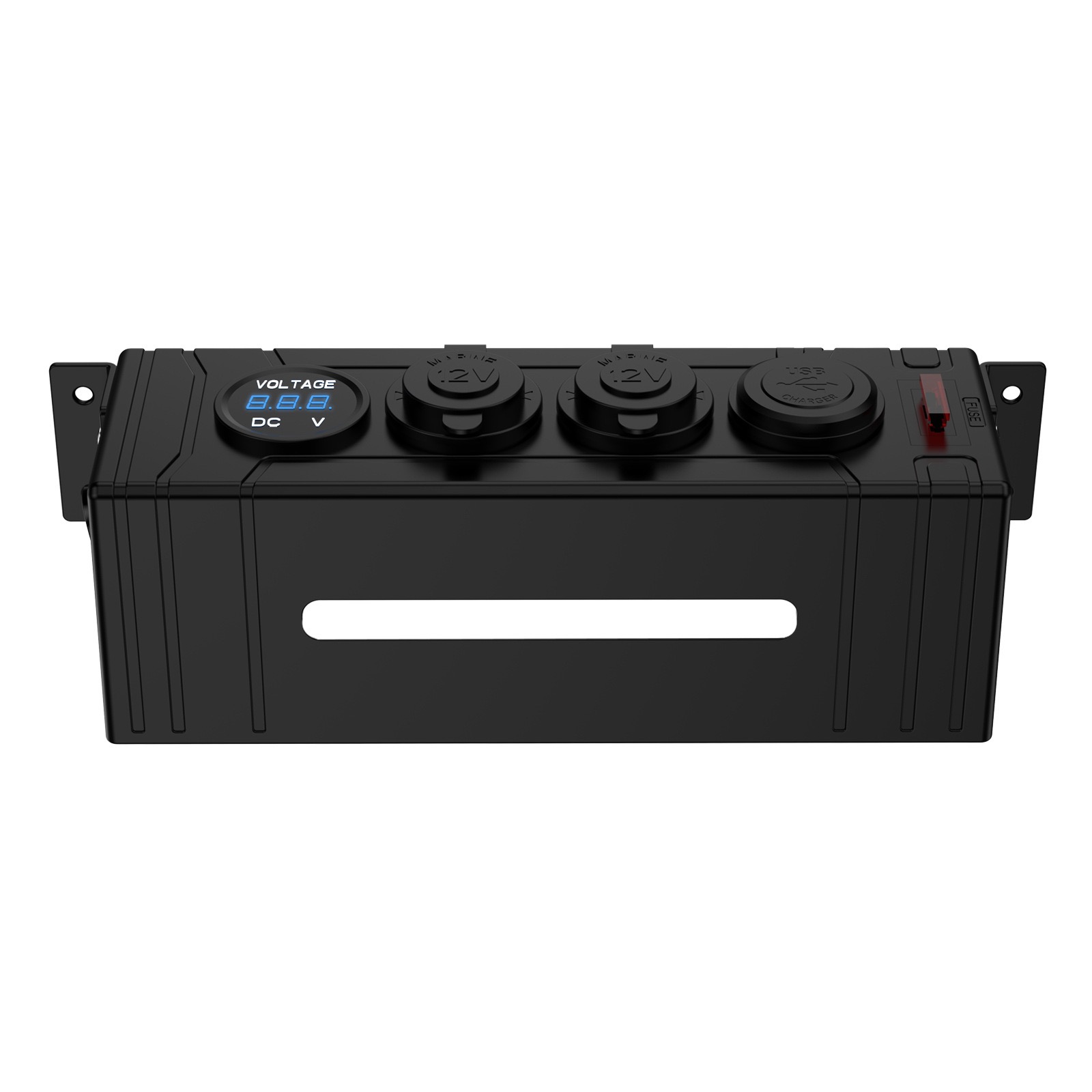

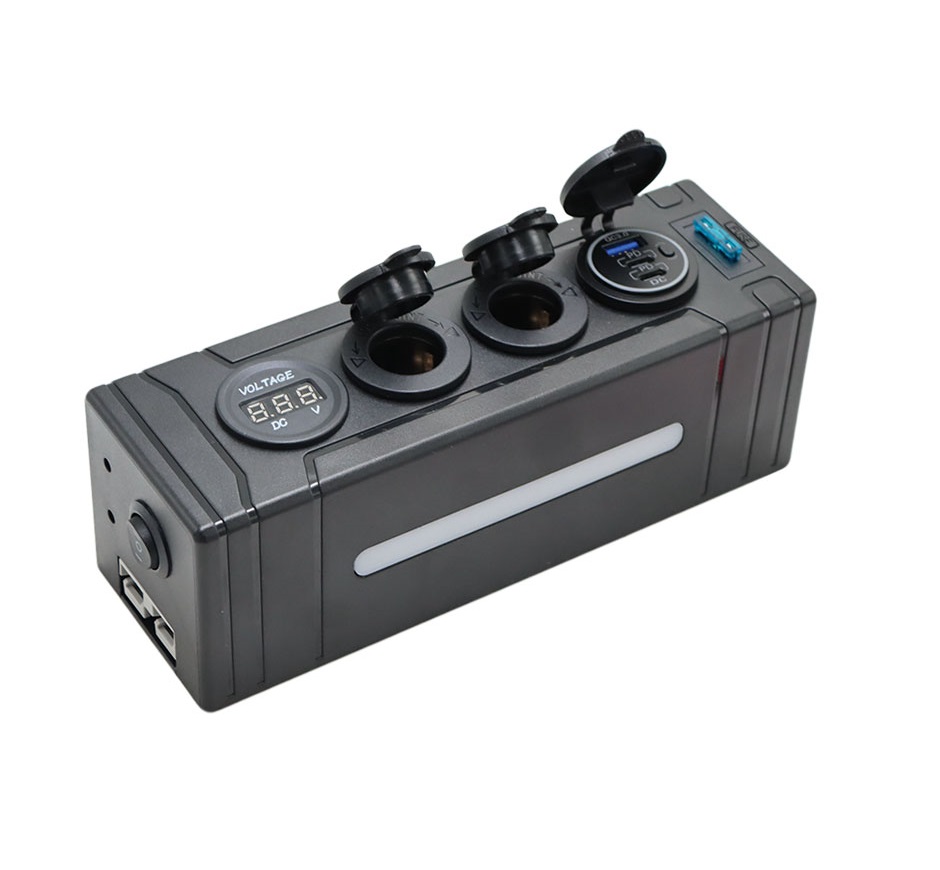

12V / 24V Slimline Power Distribution Hub with QC3.0 USB – 4WD, Caravan & Boat

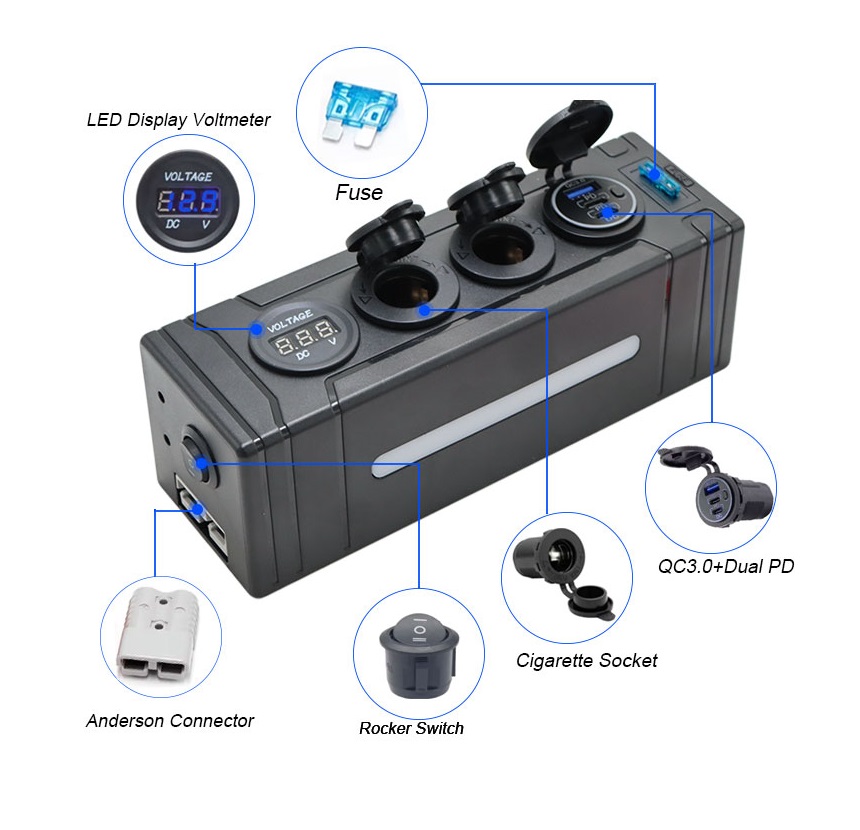

- 12V / 24V power distribution box with independent switch control
- 50A Anderson plug input for auxiliary battery systems
- Supports charging of phones, tablets and vehicle accessories
- Integrated digital voltmeter for real-time voltage monitoring
- Suitable for 4WD, caravan, camping and marine applications
| from 5 pcs. | from 10 pcs. | from 20 pcs. |
|---|---|---|
Lowest price in the last 30 days: $59.00
Description
This 12V / 24V power distribution box is designed to provide safe, organised power management for 4WDs, caravans, camping setups and marine applications. Built with independent switch control and a high-current Anderson input, it allows multiple accessories to be powered and managed from a single, compact hub.
A 50A Anderson plug is integrated to ensure reliable power delivery from auxiliary batteries or portable power systems.
This makes the unit well suited to
- Touring vehicles,
- Off-grid setups
- Mobile power installations
The power box supports charging of common electronic devices, including phones and tablets, while also supplying power to vehicle accessories such as fridges, lighting and compressors. Independent switches allow each circuit to be controlled individually, improving safety and power efficiency.
An integrated digital voltmeter provides real-time battery voltage monitoring, helping users keep track of system health and avoid over-discharge during extended use.
Designed for versatility and durability, this power distribution hub is suitable for 4WDs, caravans, campers and boats, offering a practical solution for organised 12V / 24V power management.
Specifications
| Product Type | 12V / 24V Power Distribution Hub |
|---|---|
| Operating Voltage | 12V / 24V DC |
| Maximum Current | 10A |
| Ingress Protection | IP65 (Dust & Water Resistant) |
| Switch Type | ON / OFF Independent Circuit Switching |
| Input Connection | 50A Anderson Plug |
| USB Outputs | USB-A + USB-C (PD) |
| USB Output Ratings | 5V / 3A, 9V / 2A, 12V / 1.5A |
| USB-C PD Output | 5V / 3A, 9V / 3A, 12V / 3A |
| Housing Material | ABS Plastic with Aluminium Components |
| Termination Type | Pin Connection |
| LED Indicators | Blue / Red / Green |
| Mechanical Life | 200,000 Switching Cycles |

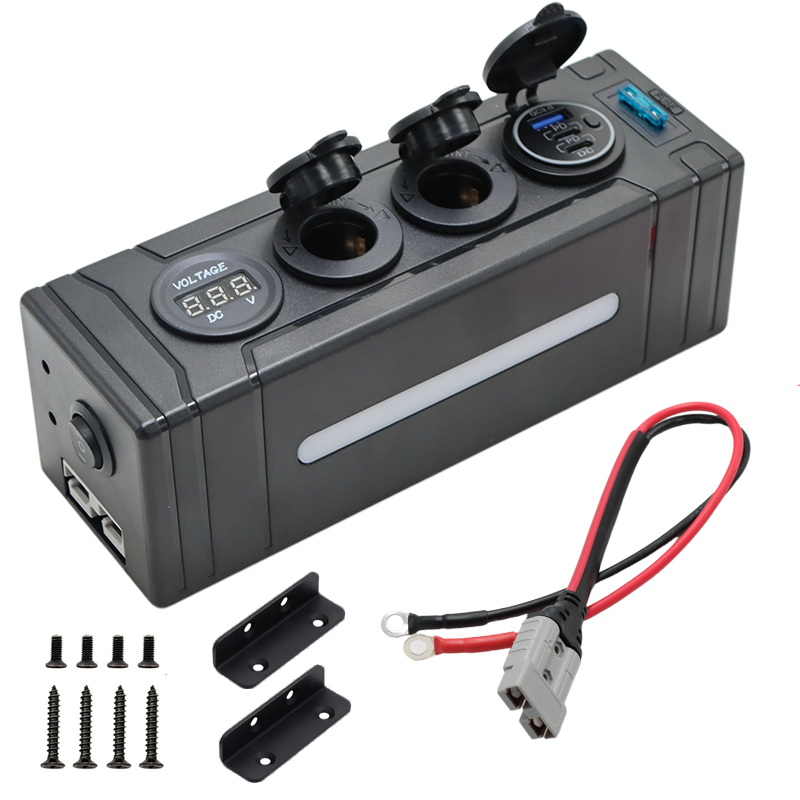

| Included Accessories | 2 × 20A Fuses, 2 × Mounting Plates, 4 × Mounting Screws |
| Applications | 4WD, Caravan, Camper, Marine, Industrial Vehicles |
Additional information
| Weight | 1.5 kg |
|---|---|
| Dimensions | 21 × 7 × 7 cm |
