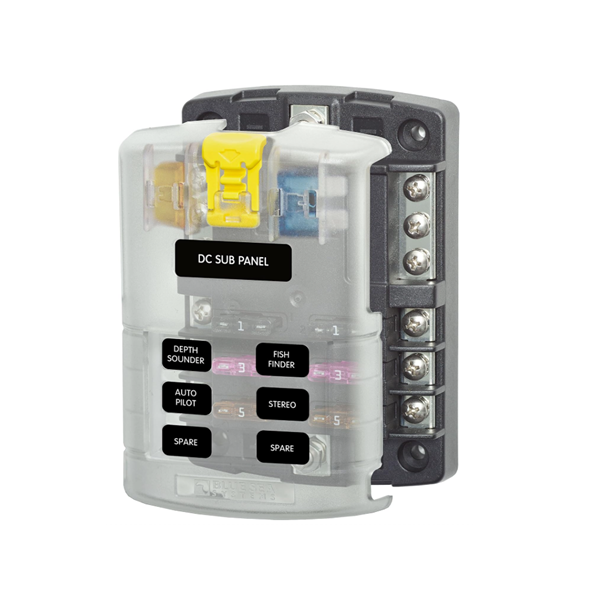

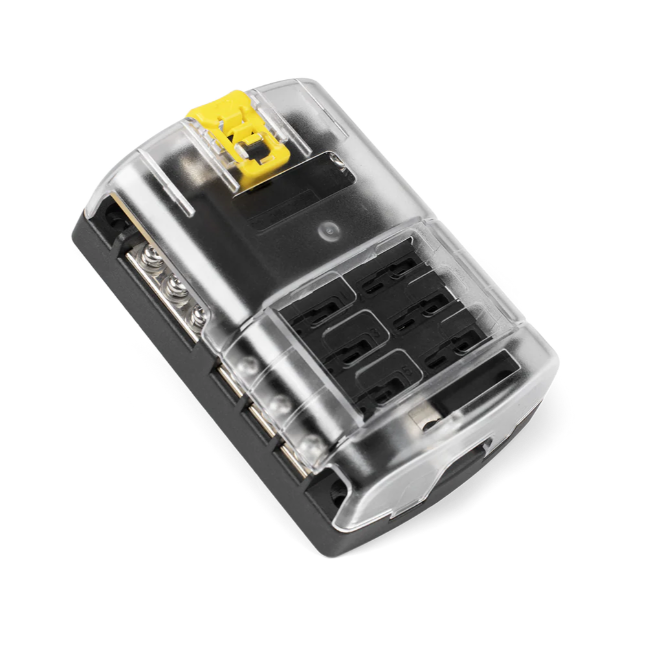

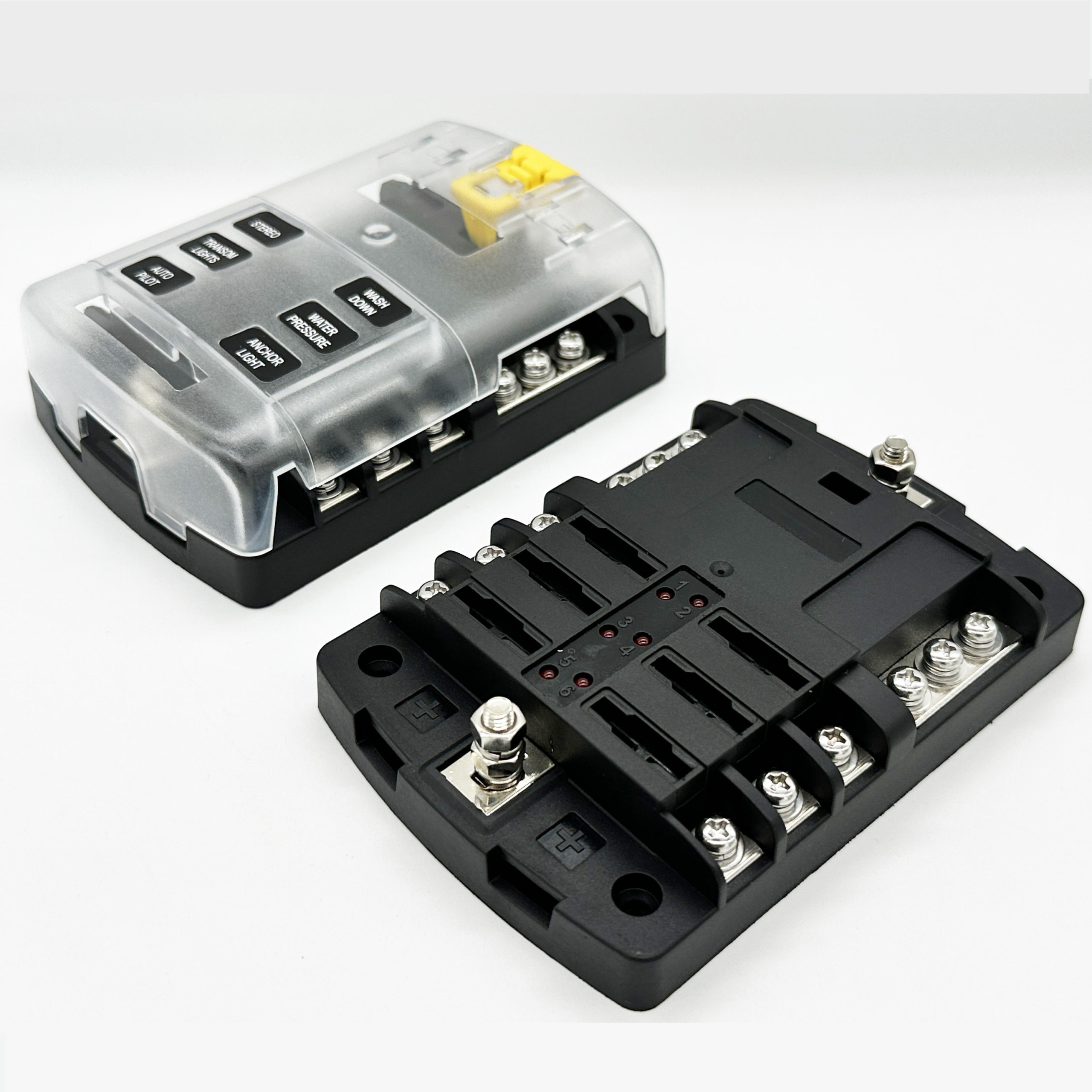

6 Way Standard Blade Fuse Block with Bus Bar
40%
Compact 6-Way circuit fuse block with integrated negative busbar and protective cover. Ideal for clean, organised 12V wiring in 4WD, caravan and marine setups.
| from 5 pcs. | from 10 pcs. | from 20 pcs. |
|---|---|---|
Lowest price in the last 30 days: $27.00
Description
The 6 Circuit Fuse Block is designed to simplify your 12V wiring setup by giving you a central, organised power distribution point. Instead of running multiple wires directly off your battery, this fuse block allows you to safely distribute power to up to 6 individual circuits each protected by its own blade fuse.
With an integrated negative busbar, it also keeps your grounding tidy, making installs faster, cleaner and far more reliable.
Key Features
- 6 fused circuits for multiple accessories
- Integrated negative busbar for clean grounding
- Uses standard ATO/ATC blade fuses
- Clear protective cover for safety and visibility
- Helps prevent wiring clutter and voltage drop
- Easy to install with clearly labelled terminals
- Durable design suited for off-road environments
Specifications
| Product Type | 6 Circuit Fuse Block |
| Number of Circuits | 6 |
| Fuse Type | Standard Blade (ATO / ATC) |
| Max Current Per Circuit | 30A |
| Max Total Current | 100A |
| Voltage Compatibility | 12V / 24V |
| Busbar | Integrated Negative Busbar |
| Input Terminal | Stud Terminal |
| Output Terminals | Screw Terminals |
| Cover Type | Clear Protective Cover |
| Mounting Type | Surface Mount |
| Material | Heat-resistant Plastic Housing |
| Applications | 4WD, Caravan, Marine, Off-Grid |
| Dimensions | Approx. 138mm x 85mm x 40mm |
Additional information
| Weight | 0.2 kg |
|---|---|
| Dimensions | 14 × 9 × 4 cm |
