500A Mega Fuse Holder Base Mount -12/24V
78%
Introducing the ANM Mega Fuse Holder, 298 Bolt-Down Series, your solution for high-current fuse protection. Built to handle heavy-duty applications, this fuse holder ensures reliable performance and robust protection for currents up to 500 amps.
| from 5 pcs. | from 10 pcs. | from 20 pcs. |
|---|---|---|
Lowest price in the last 30 days: $9.90
Description
The MEGA fuse holders excel in heavy-duty applications, supporting currents of up to 500 amps. Primarily designed for battery alternator connections and other heavy-gauge cable tasks requiring ultra-high current protection.

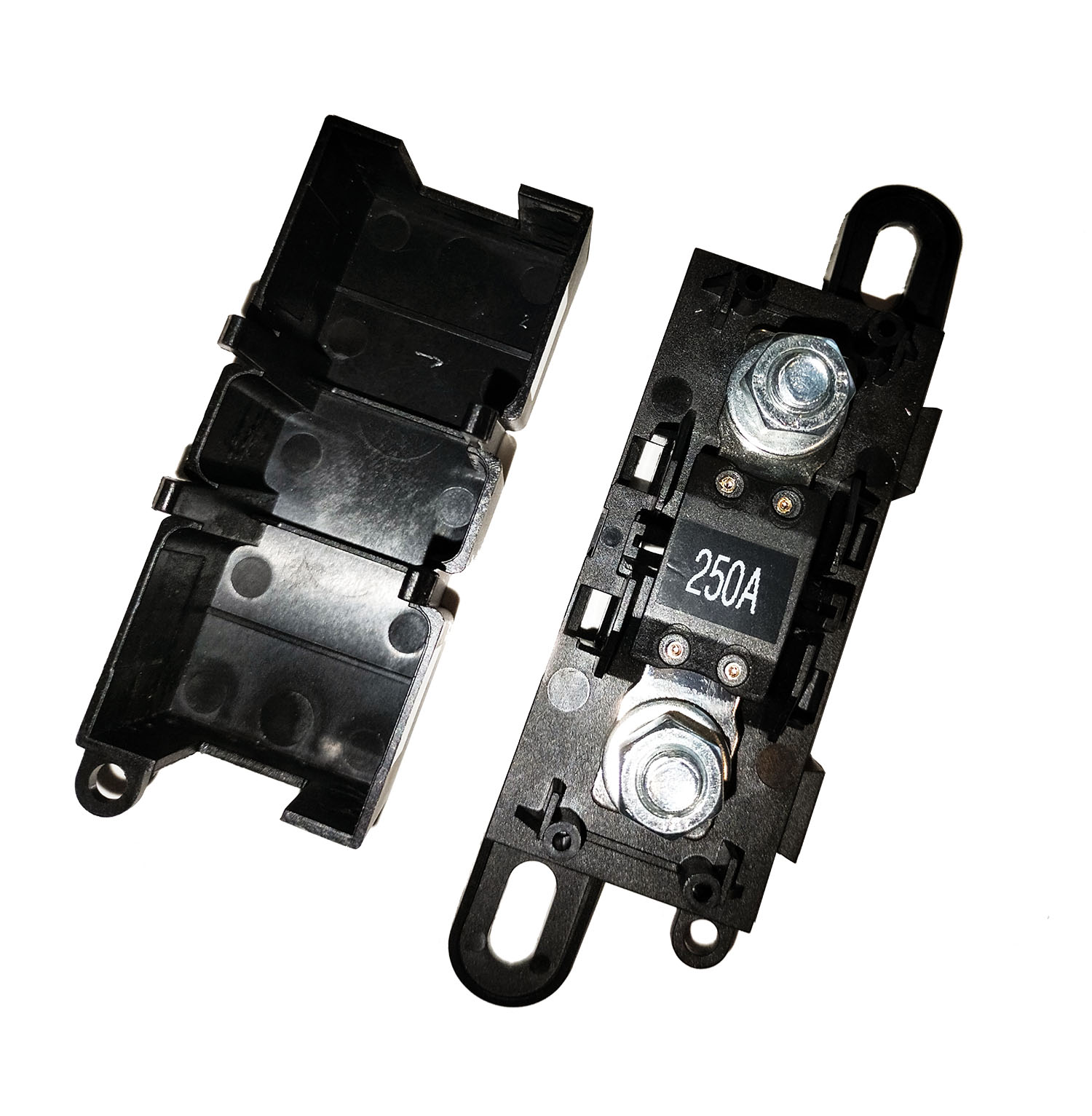

Crafted from premium materials, our mega fuse holders feature interconnecting pins along the block’s sides, enabling versatile block configurations. Additionally, a snap-fit cover enhances protection against dust and debris intrusion.
Key Features and Advantages:
- Sturdy and dependable
- Constructed from high-quality black thermoplastic
- Can be used as single fuse holders or interconnected for multiple blocks
- Compatible with MEGA blade fuses ranging from 40 Amps to 500 Amps
- Maximum 32 Volts DC
- Accommodates 14 AWG cable
- Equipped with bolt-down terminals
- Includes M8 hex nuts and locking washer fixings
- Comes with a protective cap for added safety.
Additional information
| Weight | 0.2 kg |
|---|---|
| Dimensions | 8 × 4 × 4 cm |
